932 HP Elliott Steam Turbine Generator

SKU: 467135

Be the first to review this product

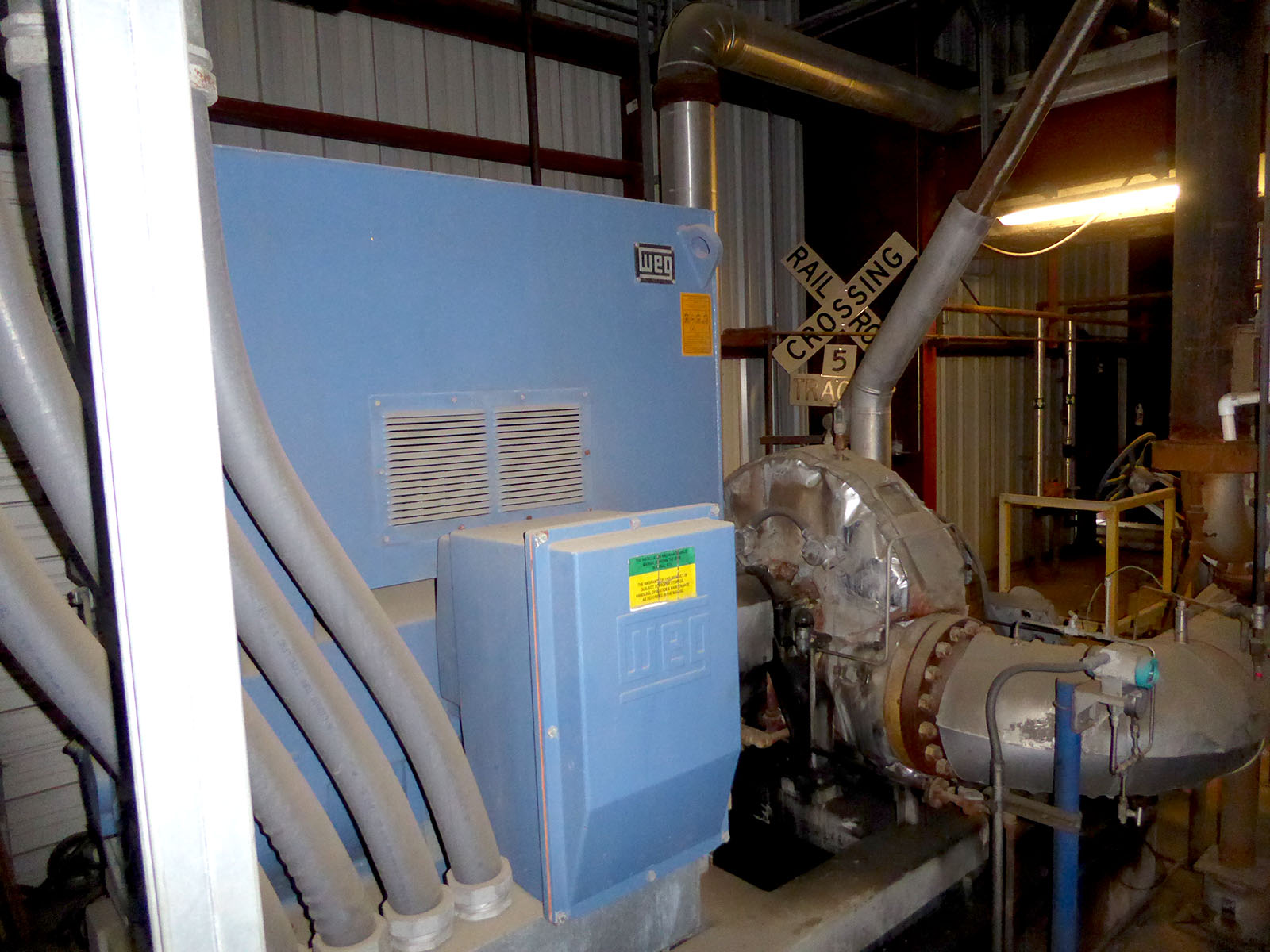

932 HP Elliott Steam Turbine with 655kw WEB Induction Generator. Year 2014. Turbine and Generator are mounted on a steel base frame. Turbine is powered by a Biomass Steam Plant. Steam conditions: 50,000 lb/hr. at 400 PSI / 448F Temperature. Inlet: 400 PSI; Exhaust: 150 PSI; Turbine speed: 3628 RPM.

Qty:

Overview
Specifications
Reviews
Contact Us

Overall Dimensions:

142" x 72" x 83"

Weights:

Turbine:	2450 Lbs.
Generator:	7893 Lbs.
Base Frame:	2944 Lbs.

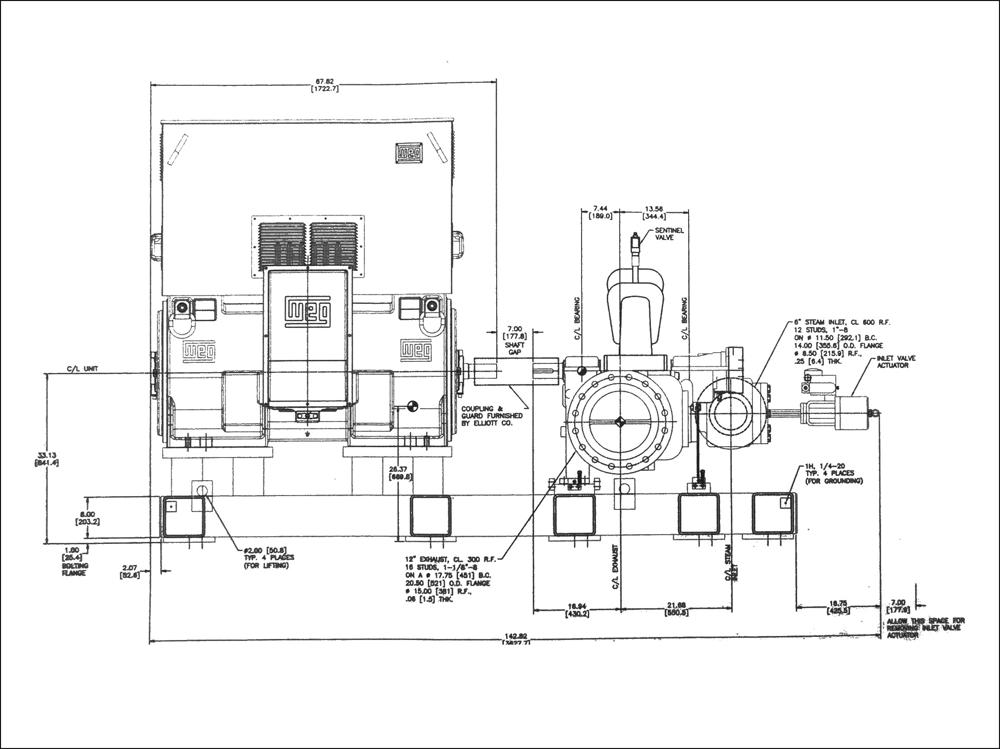

Drawings:

Products specifications

Equipment Class	Steam Turbine Generator
Design Characteristics	400 PSI @ 448F Steam
Type	Back Pressure - 150 PSI
Year	2014
Model	DYRHPE III
